HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

Name: HMK 003 Heavy Duty Electrical Connector 10A Signal Contact
Brand: ZJHK
Price: 1 USD

Quality HMK 003 Heavy Duty Electrical Connector 10A Signal Contact wholesale

Brand Name : ZJHK

Model Number : HMK-003/4-MC / HMK-003/4-FC

Certification : CE, SGS, CQC, RoHS

Place of Origin : China

MOQ : 1

Price : negotible

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100,000 pcs per month

Delivery Time : 5 Days

Packaging Details : Standard Export Cartons

Order Number : 09140073001 & 09140073101

Model Type : Modular Connector HM series

Material : Polycarbonate Sabic 3412 ECR

Contact Type : Crimp

Current : 40A / 10 A

Voltage : 830V

OEM : Provided

No of Contact : 4+3

Contact Now

HMK 003 4 830V Crimp Module Combined inserts

Inserts

Technical Characteristics

Type	Inserts
Number of contacts	3(Power) + 4(Signal) + PE
Power contacts
Rated current	40A
Rated voltage	830V
Rated Impulse voltage	8KV
Signal contacts
Rated current	10A
Rated voltage	830V
Rated Impulse voltage	8KV
Pollution degree	3
Rated Voltage Acc.to ul	600V
MecHKnical Working Life-mating Cycles	>=500
Contacts
Material	Copper Alloy
Surface	Hard-silver Plated ( 40A )
	Hard-silver Plated ( 40A ) ,Hard-silver Plated( 10A )
Contact Resistance
Power contacts	=< 0.3mΩ
Power contacts	1.5-6mm²
Power contacts	16-10 AWG
Signal contacts	=< 3mΩ
Signal contacts	0.14-2.5 mm²
Signal contacts	26-14 AWG
Max.insulation diameter of power contacts	5mm
Tool	TL02-0G Crimping Tool, TL06G Contact Removal Tool

Picture View

HMK 003 Heavy Duty Electrical Connector 10A Signal Contact

Drawing

Male inserts

Female inserts

Related Products

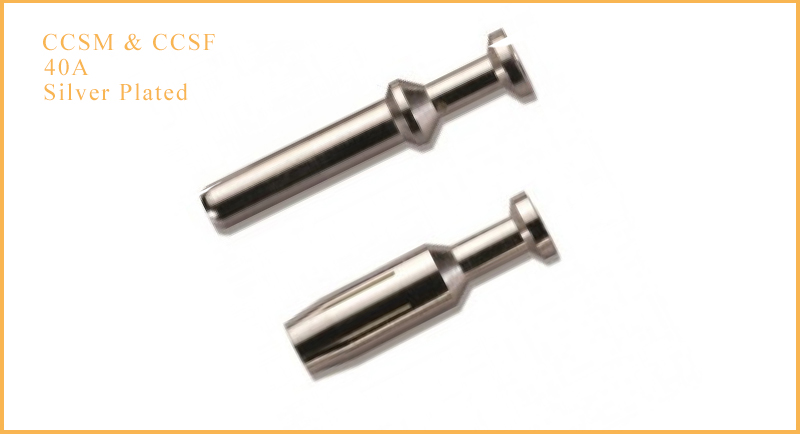

40A CRIMP CONTACTS,POWER CONTACTS

FAQ:

Q:Are you manufactory or trade company?

A:We are the manufactory in Wenzhou,Zhejiang Province,China.

Q:If we are interested in your heavy duty connector,can we visit your factory ?

A:Yes. We are normally welcome you visit us and we can learn more from each other.

Q:Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.

A:Of curse we can match harting perfectly.

Q:what’s your advantage compare with Harting,ILME,TE(SIBAS)?

A:Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.

Product Tags:

HMK 003 Heavy Duty Electrical Connector

10A Signal Contact Heavy Duty Connector

Polycarbonate Heavy Duty Electrical Connector
